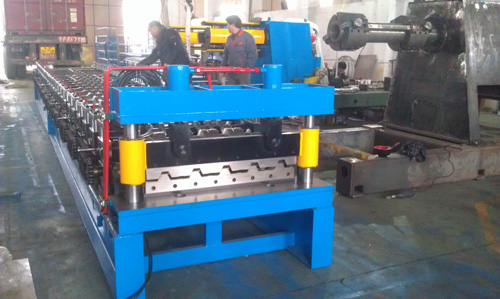

IBR 686 forming machine

Description:
Inverted Box Rib (IBR)  is widely used in the roofing industry and a common product used in roofing applications from industrial, commercial to residential applications.
IBR has a covering width of 686mm from coil width 925mm( South African standard width). It has become a household name in the South African building industry. The IBR’s deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics.  IBR can be factory Cranked, Curved and Bullnosed to various radius depending on customer's requirements.

Since 2009 we have built business relationship with some customers from South Africa and sold out more than 20 machines to South Africa,Zambia,Namibia and Angola etc ..Some of our customers in South Africa include Corruline SA. Metalforming Technology .SA ,Augusta Profiles,Khanyisa SA and so on .

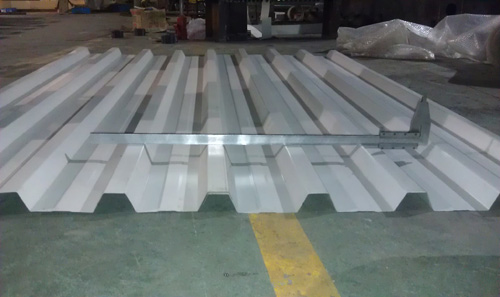

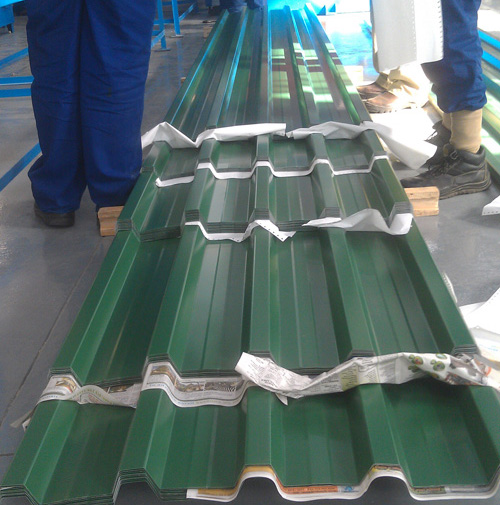

Profile show

Specification:


1

Suitable to be rolled

mm

0.27-0.8mm Full hard,G550Mpax925mm width

2

Line  speed

m/min

12-35

3

Forming station

/

23

4

Main machine power

kw

11

5

Hydraulic power

kw

5.5

6

Way of cutting



Hydraulic mould cutting

7

Electrical Control system

/

PLC ,Panasonic//Simens/Mitsubishi

8

Way of Drive

/

Chain drive

9

Decoiler options



5T/10T/15Tmanual/motorized/hydraulic decoiler ( coil car as option)

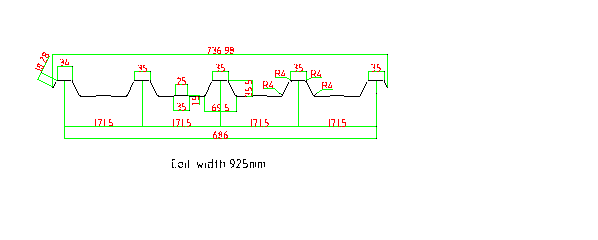

Profile Drawing:

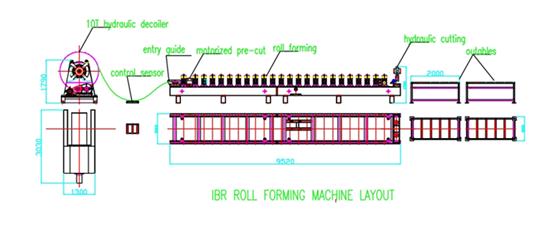

flowchart:
IBR686 Roll Forming Machine
