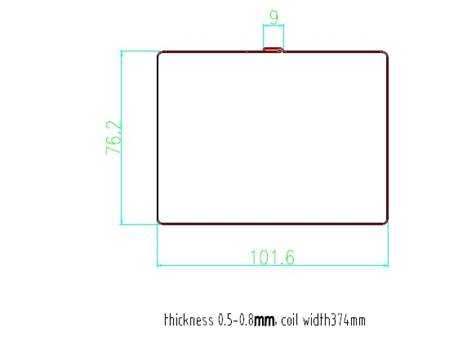

Profile Drawing:
Specifications:
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
0.4-0.9mm |
2 |
Forming speed |
m/min |
12-15 |
3 |
Roll station |
/ |
19stations(depend on the profile) |
4 |
Main power |
kw |
5.5 |
5 |
Hydraulic power |
kw |
4 |
6 |
Control system |
/ |
PLC panasonic/Simens |
7 |
Drive |
/ |
by chain |

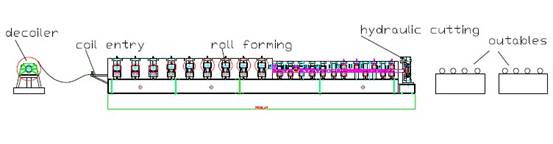

Flowchart:
 |
