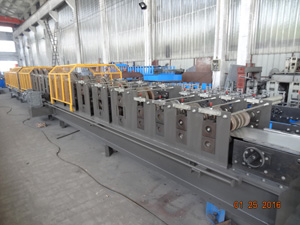

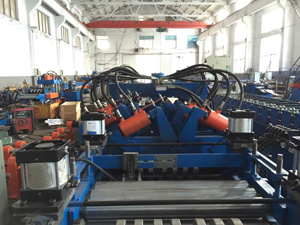

Roof Battern rollformer

Your present location: Home > Productsproducts

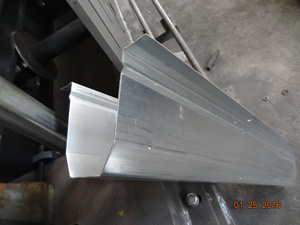

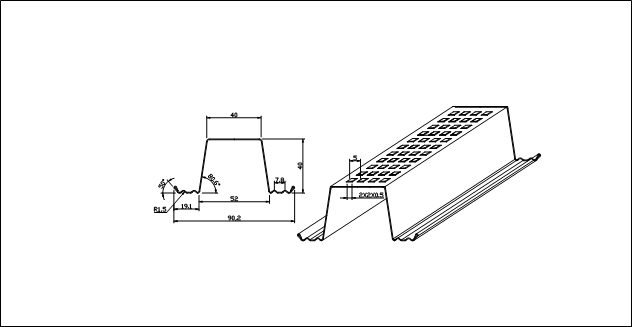

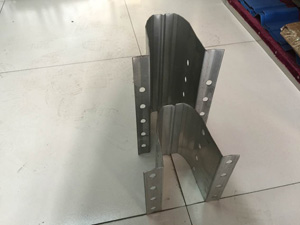

Profile show:

Work Flow:
manual decoiler--feeding----sheet forming--hydraulic cutting after forming--outable

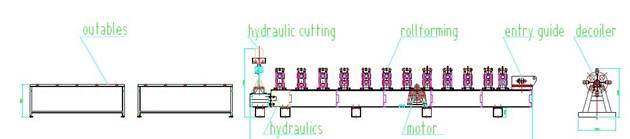

Drawing:

Specification:

1	Material thickness	mm	0.5-0.8mm G350Mpa
2	Forming speed	m/min	12-15
3	Roll station	/	14
4	Main power	kw	5.5
5	Hydraulic cutting power	kw	4
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler		5T/manual decoiler ( coil car as option)
