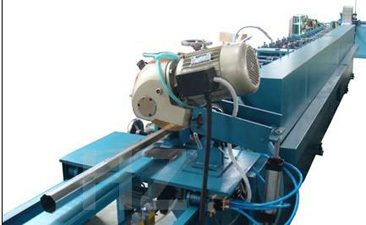

Octagonal Pipe Forming Machine

Your present location: Home > Productsproducts

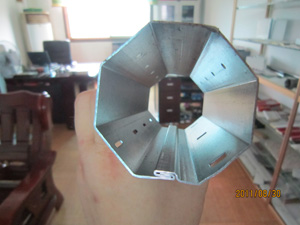

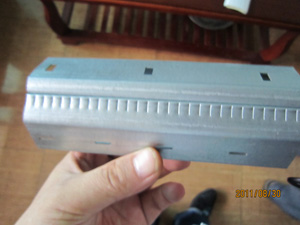

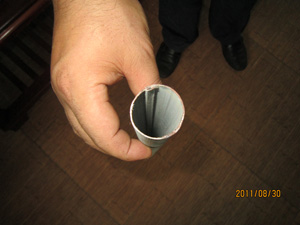

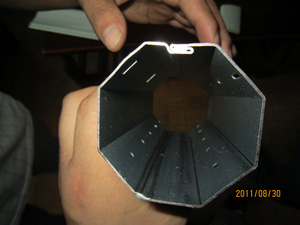

Profile show:

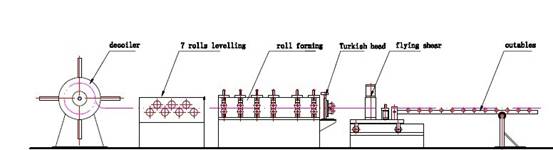

Work Flow:
manual decoiler--feeding&leveling----sheet forming--flying saw cutting after forming--outable

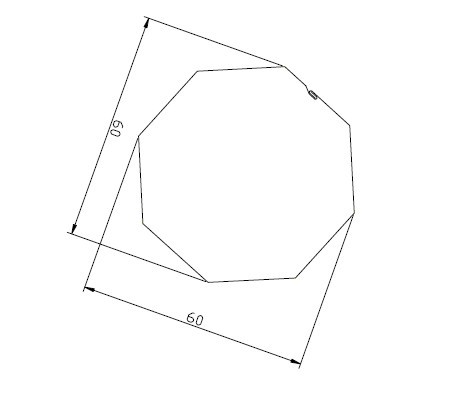

Profile Drawing:

Specification:

1	Material thickness	mm	0.6-1.2mm G350Mpa
2	Forming speed	m/min	12-15
3	Roll station	/	18
4	Main power	kw	7.5
5	Saw cutting power	kw	3
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler		5T/manual decoiler ( coil car as option)
