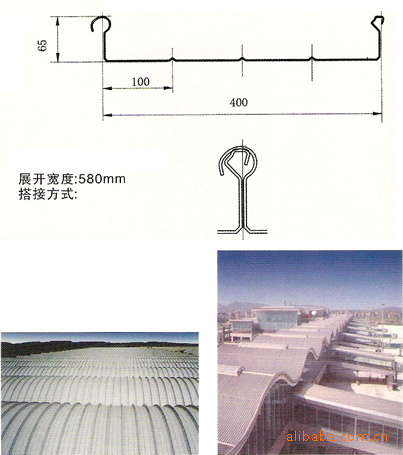

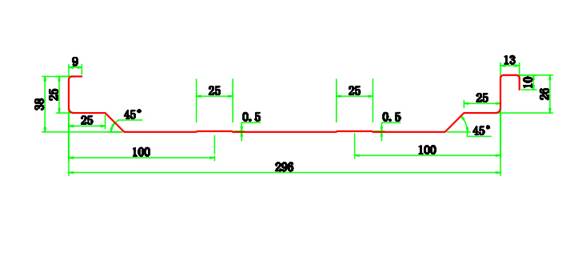

Drawing:

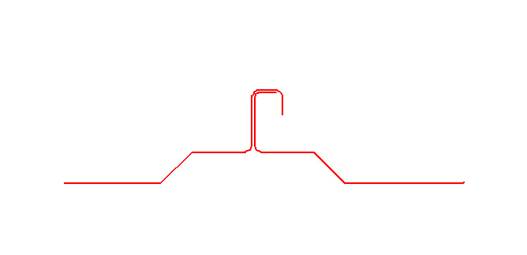

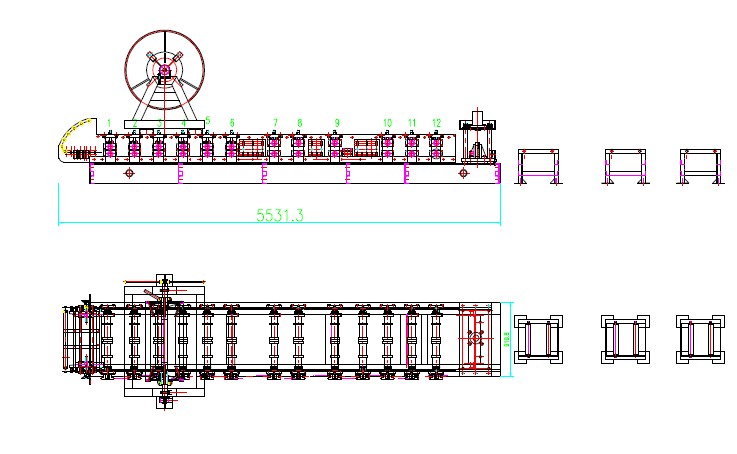

Overlapped drawing
Technical parameter
1 |
Material thickness |
mm |
0.4-0.9mm |
2 |
Forming speed |
m/min |
0-20 |
3 |
Roll station |
station |
12 |
4 |
Main power |
kw |
7.5 |
5 |
Hydraulic Power |
kw |
4 |
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
7 |
Power supply |
|
380v,50Hz,3ph |
8 |
Drive |
/ |
Chain drive |
Flow chart
manual decoiler—feeding—roll forming—hydraulic cut-off—outables
components of the whole line

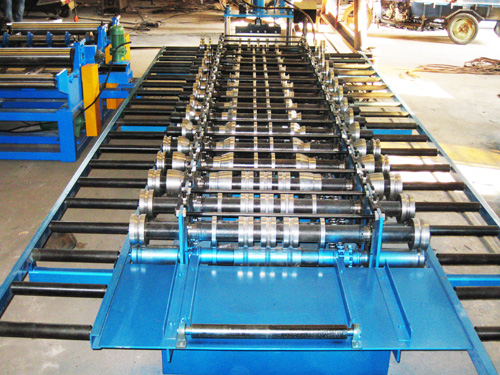

main roll forming machine |
1pc |

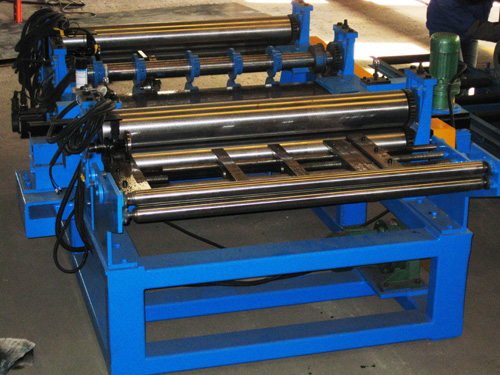

5T Manual decoiler |
1pc |
Hydraulic station |
1pc |
PLC cabinet |
1pc |
production output tables |
2 pcs |
Cutting blades |
2 sets |
Seamer machine |
1 pc |
Curving machine |
1 set |
 |
