Descrition:

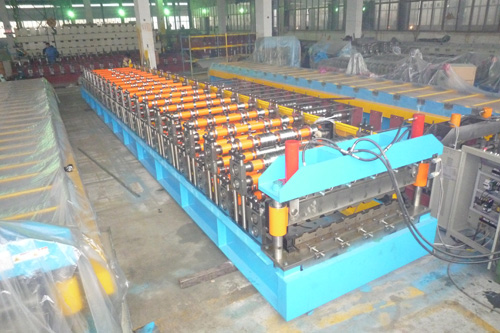

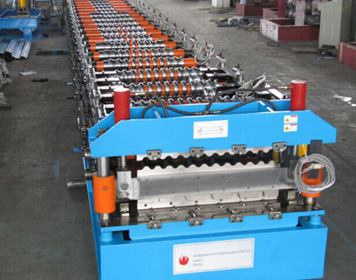

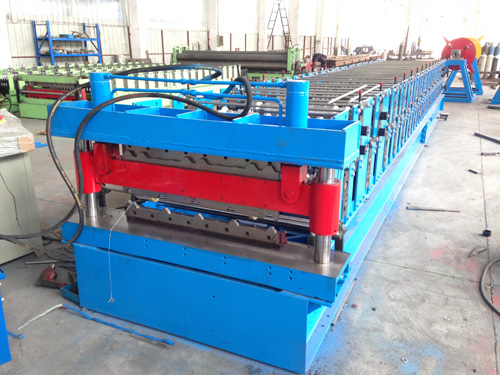

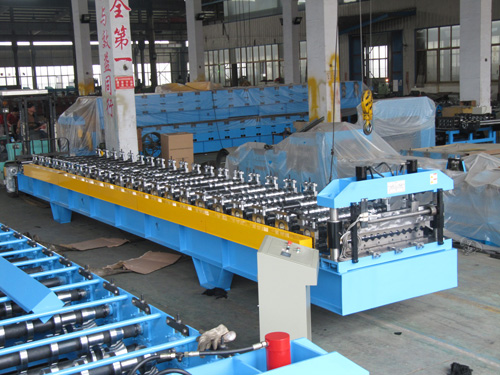

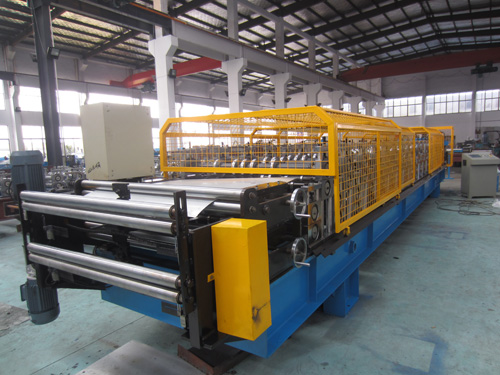

The double layer forming machine is consist of top layer and bottom layer and the both layers can share the same motor,PLC control cabinet,hydraulic control system but each layer has independent driving system

The biggest advantage for the double layer forming machine is to save the space and the budget,especially for the customers who has limited market and lack funds.

It is easy to shift from top layer into bottom layer for the operator and can achieve the productivity demands by adopting one single machine instead of the two independent machines.

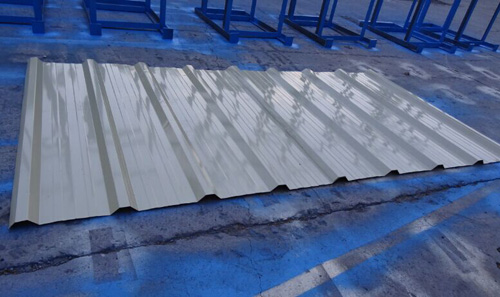

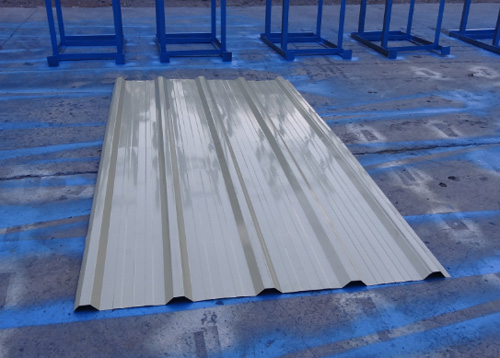

Profile show :

Technical Specification:

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.2-0.5m
2	Forming speed	m/min	12--18

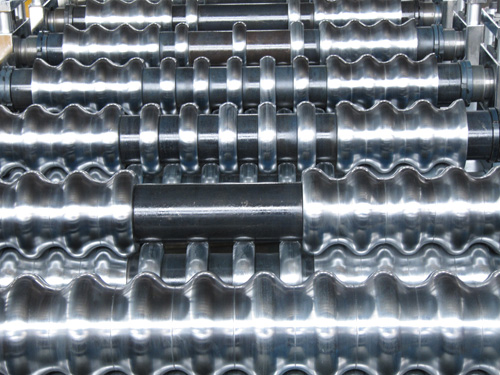

3	Forming  station	/	18stations for top layer 23 stations for bottom layer
4	Main power	kw	11
5	Hydraulic power	kw	4
6	Control system	/	PLC panasonic/Mitsubishi
7	Drive	/	by chain
8	Way of decoiler		5T manual decoiler 5T hydraulic decoiler as an option

Profile Drawing:

flowchart:
