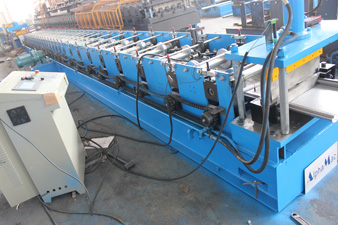

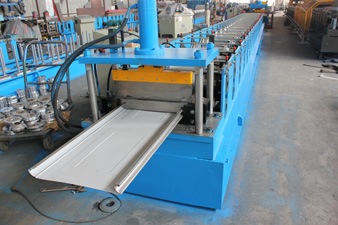

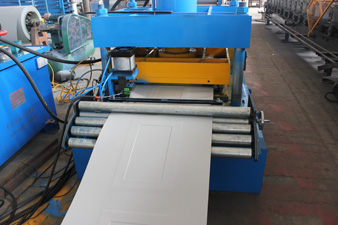

Steel Door Panel Line

Your present location: Home > Productsproducts

Profile show

Profile drawing:

holes punching drawing on the bottom

The thickness is 0.6mm--1.2 cold rolled steel and flat material width 925mm.

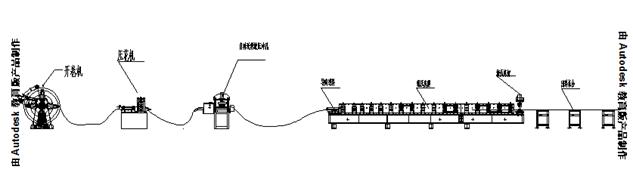

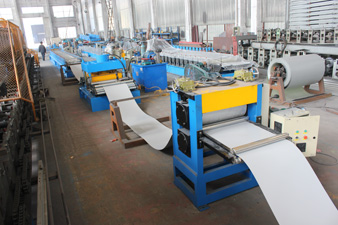

The flowchart of the machine:

Specifications:

1	Material thickness	mm	0.6-1.2mm Full hard,G550Mpa
2	Forming speed	m/min	12-15
3	Roll station	/	17
4	Main power	kw	7.5 servo motor
5	Cutting power	kw	7.5
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	3	3T manual decoiler
