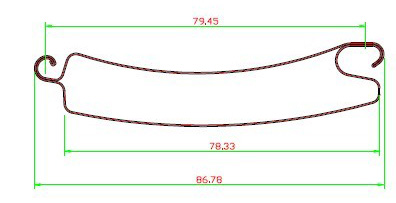

Drawing:

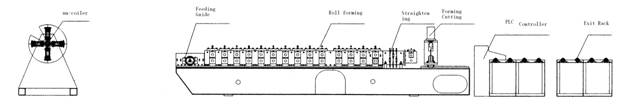

Production Flow:
Put the steel coil on the un-coiler—→Feeding guide equipment—→Roll-forming Machine—→Foaming machine —→Adjusting device —→ Punching device----Flying saw cutting—→finished products on stacker
Specifications:
1 |
Material thickness |
mm |
0.4-0.6mm Full hard,G550Mpa |
2 |
Forming speed |
m/min |
12-15 |
3 |
Roll station |
/ |
40 |
4 |
Main power |
kw |
7.5 |
5 |
Cutting power |
kw |
2.2 |
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
Chain drive |
8 |
Decoiler |
1.5 |
1.5T manual decoiler |
 |
