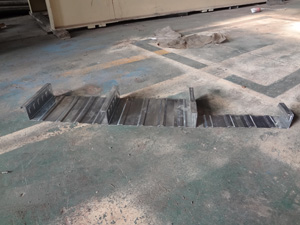

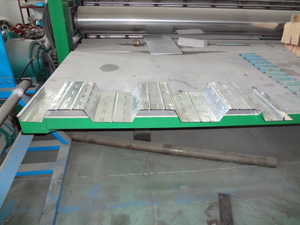

Profile show:

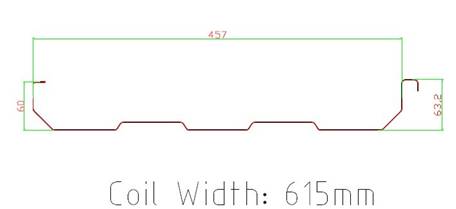

Profile Drawing:
Technical parameter:
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
0.4-0.9 |
2 |
Width of raw material |
mm |
615 |
3 |
Roll station |
/ |
16 stations |
4 |
Main power |
kw |
5.5 |
5 |
Hydraulic power |
kw |
4 |
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
Chain drive |
8 |
Decoiler |
5T |
Manual |

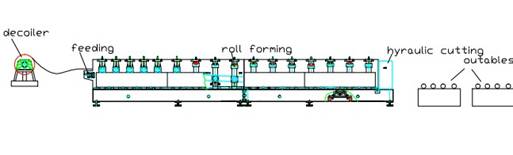

Flow chart:
Manual decoiler—feeding—roll forming—hydraulic cutting—product
components of the whole line:

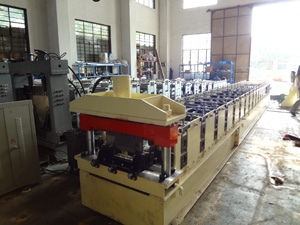

main roll forming machine |
1pc |
Manual decoiler |
1pc |
Hydraulic station ( |
1pc |
PLC cabinet |
1pc |
production output table |
2 pcs |
Seaming machine |
1pc |
 |
