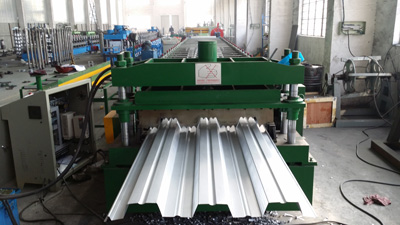

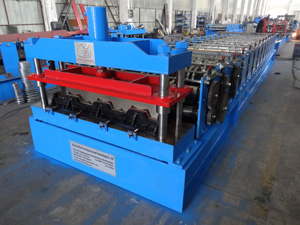

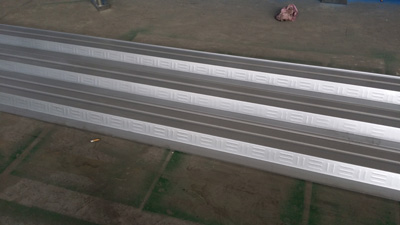

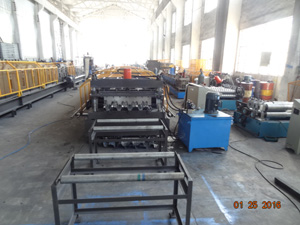

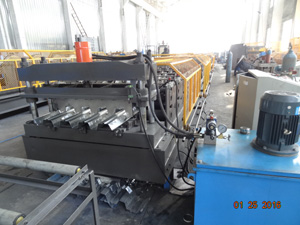

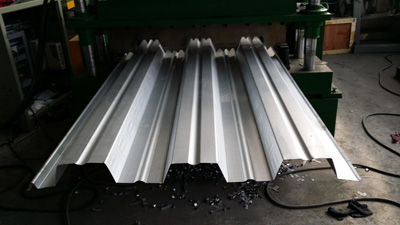

Your present location: Home > Productsproducts 914 Metal Deck Forming Machine Profile show:

Profile Drawing:

Technical parameter:

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.6-1.2
2	Forming speed	m/min	12-15
3	Roll station	/	44 stations
4	Main power	kw	44
5	Hydraulic power	kw	7.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	10T	hydraulic decoiler

Components of the whole line:

10T hydraulic Decoiler,  Roll forming machine ,Hydraulic shearing system,hydraulic station,PLC control cabinet ,2 outables

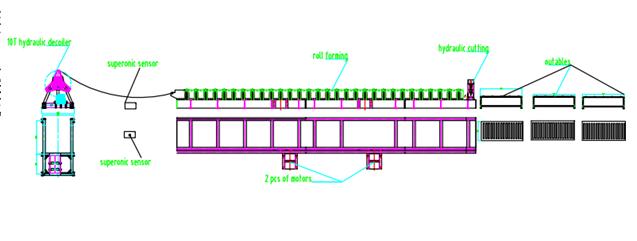

Flow chart:

10T hydraulic decoiler--feeding ---roll Forming---hydraulic cutting--outables
