Your present location: Home > Productsproducts 4--16 mmx 2100mm Four Edge CTL line

Work Flow of the Cut To Length Line:

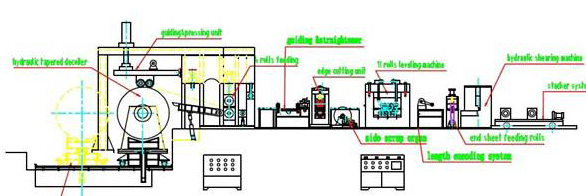

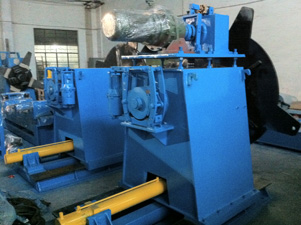

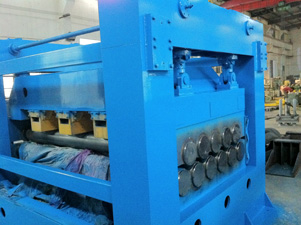

Coil loading car----Decoiler----coil head press, guide and shovel equipment----Double roller pinch feeder---Transmission roll table----Central aligner---straightener----15roller leveler----encoder ---- end sheet feeding ---- shearing ---- plates-delivering roll table----plates sending out device----plates supporting table---plates piling up device
Other equipments: hydraulic station, DC motor electric control cabinet, electric control consoles.



Material of coils: normal carbon steel: Q195、Q235, ST52（Q345B） etc.
Thickness of coil: 4-16mm
Width of coil: 500-2100mm
Coil Outer diameter: max 2100mm
Coil Inner Diameter: Φ600-800mm
Coil weigth: max 20T
Cutting length: 3000-12000mm
