Your present location: Home > Productsproducts 0.4--3x1300mm High-Speed CTL line

Specification:
Coil thickness:0.4--3mm
Coil width:300mm---1300mm
coil outer diameter: ф1000--- ф2000mm
Coil inner diameter:φ508mm,φ610mm.φ760mm.
Cutting length:1000mm---12000mm
Cutting length tolerance:+/-0.5mm  according to the length 1000mm
Cutting diagonal tolerance:+/-1mm according to the length 1000mm
Leveling accuracy:≤±1.0mm/m2
Line speed:0--110m/min
Cutting speed:25 pcs/min according to 2m long sheet
Whole Line weight:50t
Total power of the whole line:110KW

Main Components:

Hydraulic coil car(20T)	1
Hydraulic double mandrel decoiler(20T)	1
V-shaped coil storage platform	1
Head guiding& shoveler head unit,	1
2 pinch rolls and 19 pre-leveling rolls	1
Pit(loop)	1
Center alligning unit	1

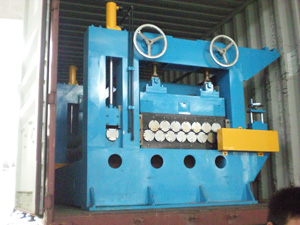

9 rolls precision- levelling  for measuring	1 set

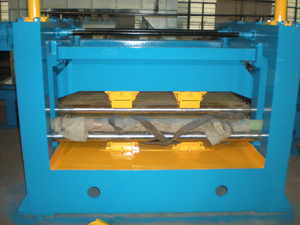

Hydraulic Shearing machine	1

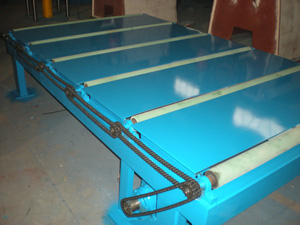

Belt transmission table
Sheet piling-up platform	1

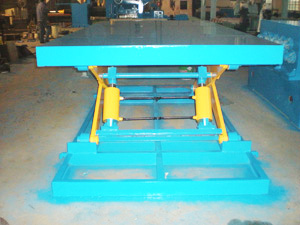

Hydraulic lifting& lowering Stacking table	1
Sheet unloading coil cars	2 units
Hydraulic control cabinet	1 set
Pneumatic control system	1 set
Electrical control cabinets	1 set

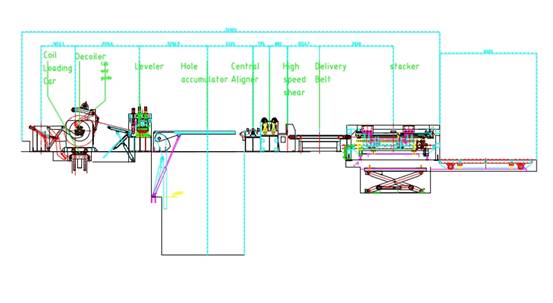

Flow Chart:
Hydraqulic coil car--hydraulic single head decoiler--guiding&pressing and shoveller head unit--center alligning --2 pinch rolls&19rolls leveling machine--pit--guiding--9 rolls leveling--- shearing machine---sheet transmission table----hydraulic shearing machine--sheet transmissioning table----hydrulic stacker--hydraulic control  system and electrical  control cabinets
