Basic specification of the whole line:
Steel coil grade:бs≤360N/mm2,pre-painted steel or galvanized steel
Coil thickness:0.3--2mm
Coil width:500mm---1250mm
coil outer diameter: ф1000--- ф1800mm
Coil inner diameter:φ460mm--φ520mm
Cutting length:1000mm---6000mm
Cutting length tolerance:+/-0.5mm  according to the length 2000mm
Cutting diagonal tolerance:+/-1mm according to the length 2000mm
Leveling accuracy:≤±1.0mm/m2
Line speed:0--110m/min
Cutting speed:25 --30pcs/min according to 2m long sheet
Whole Line weight:50t


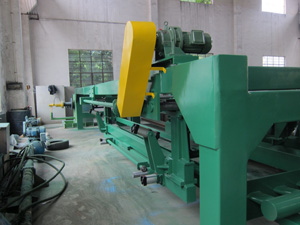

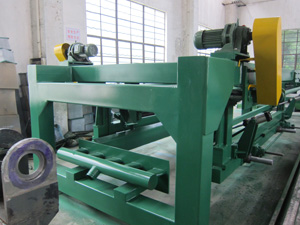

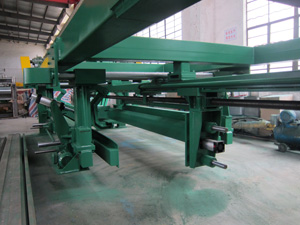

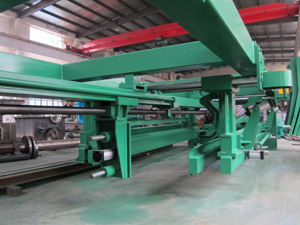

Components of 0.3mm---2mm x 1250mm leveling&cut-to-length machine

Hydraulic coil car(25T)	1
Hydraulic double tampered decoiler(25T)	1
V-shaped coil storage platform	1
Head guiding& shoveler head unit,	1
2 pinch rolls and 19 pre-leveling rolls	1
Pit(loop)	1
Center alligning unit	1
2+2 rolls( length measuring)	1 set
Hydraulic Shearing machine	1
Belt transmission table	1
Sheet piling-up platform	1
Hydraulic lifting& lowering Stacking table	1
Sheet unloading coil car	1 pc
Hydraulic control station	1 set
Pneumatic control system	1 set

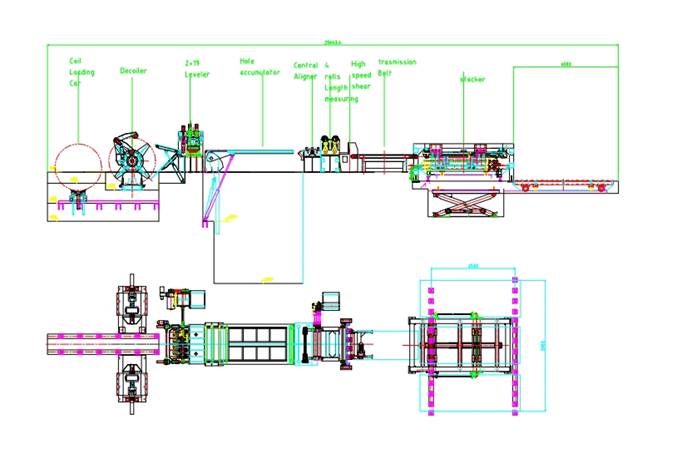

Flow chart:
Hydraqulic coil car--hydraulic double tampered decoiler--guiding&pressing and shoveller head unit--center alligning --2 pinch rolls&19rolls leveling machine--pit--guiding--4 rolls leveling for measuring the length---sheet transmission table----high-speed shearing machine--sheet transmissioning belt---auto stacker-----hydraulic control  system and electrical  control cabinets
