Basic specification of the steel coil
Steel coil grade:δs,≤380N/MM, δb≤650N/MM carbon steel
Coil thickness:2mm---6mm
Coil width:50mm--100mm--450mm,max 450mm
coil outer diameter: maxф2100mm
Coil inner diameter:φ480
Cutting length:100mm---3000mm----6000m
Coil weight:max 10T
Components of 2--6mmx 450mm slitter/cut-to-length machine

hydraulic decoiler,guiding&pressing and shovel head unit, side guiding organ, rolls leveling machine,  length encoding(measuring) organ, .slitter organ ,hydraulic shearing machine,hydraulic control  system and electrical control system

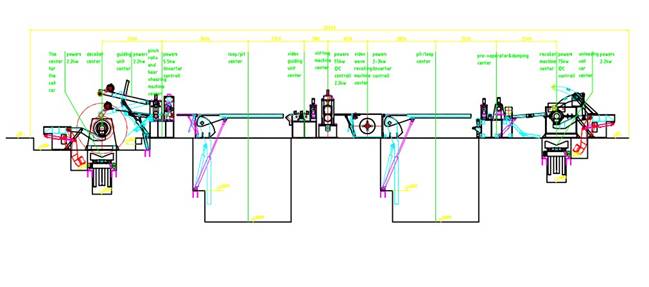

Flow chart :

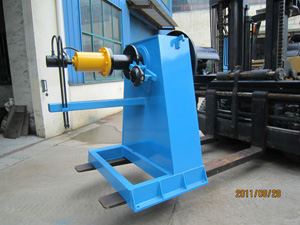

Hydraulic coil car---single mandrel decoiler—head-guiding&head shovel and 2 rolls feeding --sheet head shearing machine---Pit(1)--deviation rectifying(sheet guiding)--slitting—side scrap recoiling—pit(2)---pre-seperator and damping tensioning machine---coil recoiling ---unloading coil car—--hydraulic control ---electrical control
