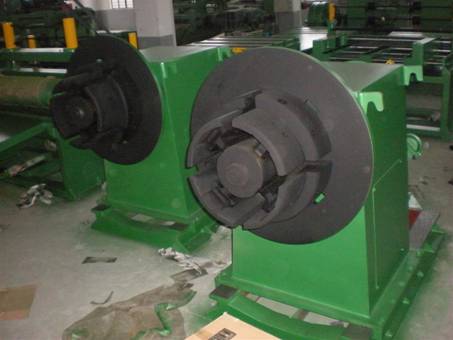

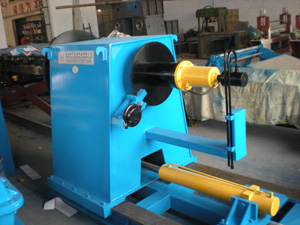

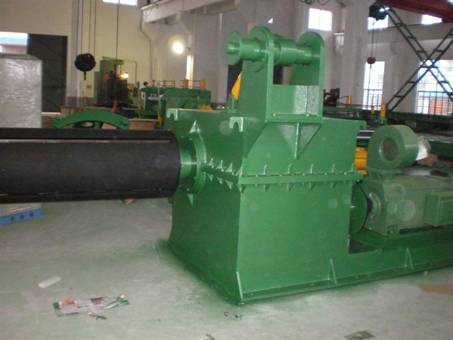

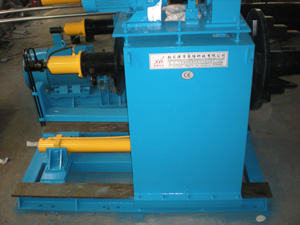

Double mandrel decoiler

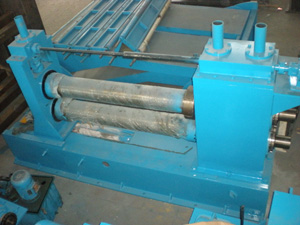

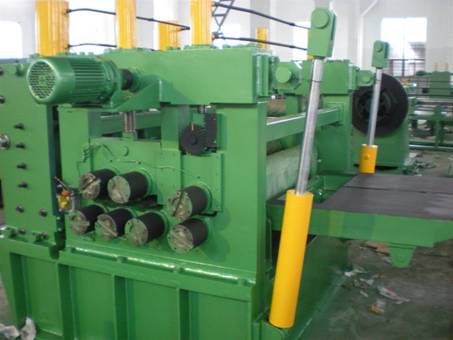

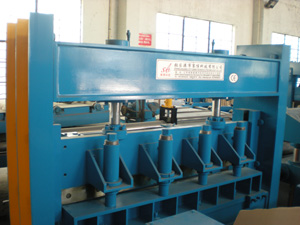

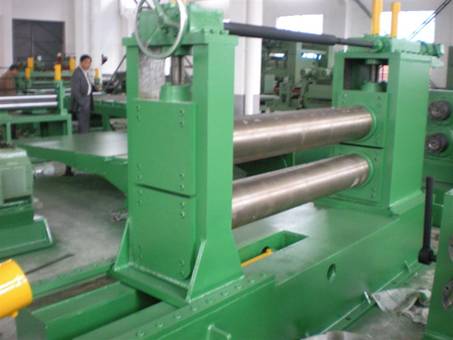

2 pinch rolls and 5 levellers

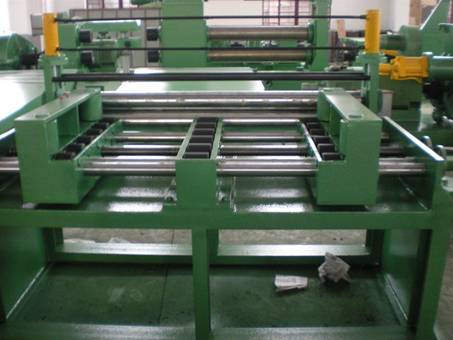

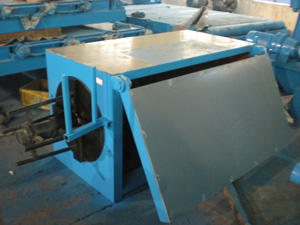

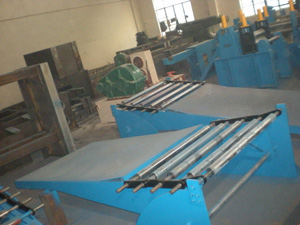

Pit table

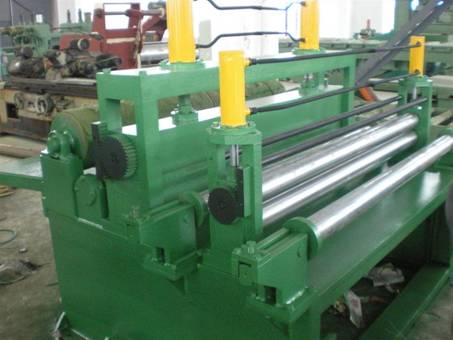

aligner

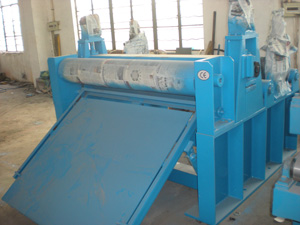

Main slitter  frame

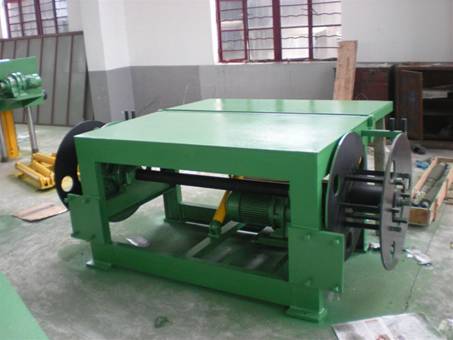

Side waste reel(rewinder)

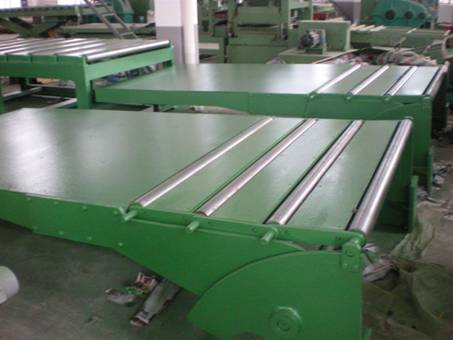

pre-seperator and damping rolls

 Coil recoiler

Discharging coil car



2--6mmx1800 Slitting Machine

Descrition:

1.The slitting machine is used widely in the steel coil processing industry with which it can process big galvanized steel coil,pre-painted steel coil,alumzinc coils and so on into some various widths and smaller coils then these smaller coils can be used widely in the roll forming industry to form different profiles .

2.The whole line consits of coil car,decoiler,pinch rolls, guiding,head shearing organ,slitting machine,waste scrap recoiler ,tensioner,pre-seperator ,recoiler and unloading coil car .

1. 3.We adopt Mitsubishi PLC and human-interactive touch screen ,Eurotherm controller to realize the automatic production as well top quality hydraulic valves made in Taiwan or Germany
2. 4.We can provide all-life maintance and technical guide of the machine as well the spare parts  to our customers
3. 5.It is easy to operate with low noice,stable performace and high efficiency



1.   Basic technical parameters of coils
1.1Material of coils:High Strength Low Alloy steel ,78ksi(G550Mpa)
1.2coil thickness: 2～6.35mm
1.3coil width: 500～2100mm
1.4Inner diameter of coils: ≥Φ508mm(Φ508, 610, 760)
1.5Outer diameter of coils: Φ2100mm.
1.6 Max. coil weight: 25000Kgs

2.  Working process
Coil-loading——Double-mandrel uncoiling——Coil-end-feeding & shoveling——2 pinch  rolls & 5-rollers leveling——head cutting----Hole Accumulator(1)-----aligning----Disc slitting——Scrap rewinder——Hole Accumulator(2)——Pre-separator/ 5 Rolls Tensioner——Separator & Recoiler——Coils-discharging——Hydraulic control——Electric control



Specification:

NO.	Items	Unit	Main specification
1	Material thickness	mm	1.5-3.0
2	Forming speed	m/min	12-15
3	Roll station	/	20
4	Main power	kw	18.5
5	Hydraulic power	kw	7.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T	Manual type and hydraulic decoiler and coil car as options
