Your present location: Home > Productsproducts 0.3--2x1300mm Slitting Machine

Descrition:
1.The slitting machine is used widely in the steel coil processing industry with which it can process big galvanized steel coil,pre-painted steel coil,alumzinc coils and so on into some various widths and smaller coils then these smaller coils can be used widely in the roll forming industry to form different profiles .

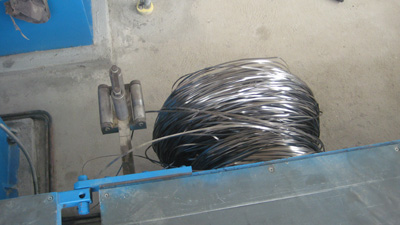

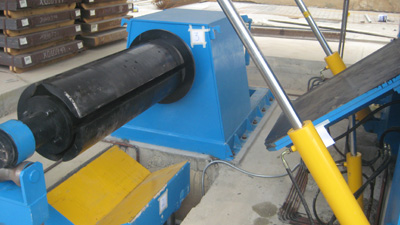

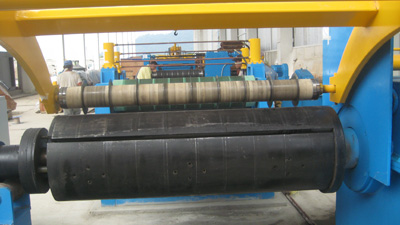

2.The whole line consits of coil car,decoiler,pinch rolls, guiding,head shearing organ,slitting machine,waste scrap recoiler ,tensioner,pre-seperator ,recoiler and unloading coil car .

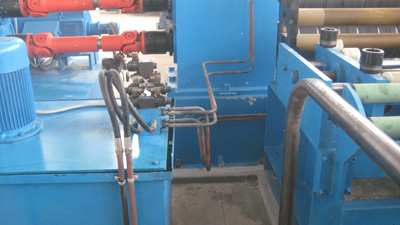

3.We adopt Mitsubishi PLC and human-interactive touch screen ,Eurotherm controller to realize the automatic production as well top quality hydraulic valves made in Taiwan or Germany
1. 4.We can provide all-life maintance and technical guide of the machine as well the spare parts  to our customers
2. 5.It is easy to operate with low noice,stable performace and high efficiency

Profile show:

1. Basic specification of the steel coil:

Steel coil material:common carbon steel,galvanized steel or pre-painted steel
Coil thickness:0.3mm--2mm
coil diameter:max ф2100mm
Coil width:300mm---1300mm
Coil inner diameter:≥φ508
Coil weight:max 20T

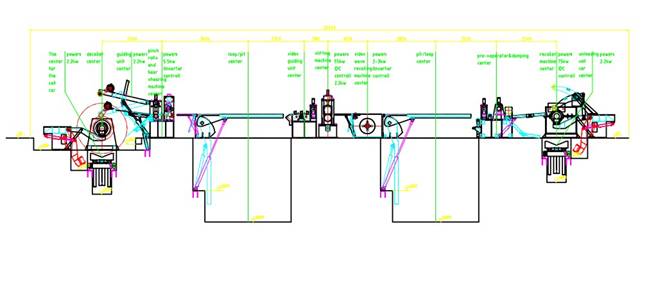

Flow chart :
Hydraulic coil car---single mandrel decoiler—head-guiding&head shovel and 2 rolls feeding --sheet head shearing machine---Pit(1)--deviation rectifying(sheet guiding)--slitting—side scrap recoiling—pit(2)---pre-seperator and damping tensioning machine---coil recoiling ---unloading coil car—--hydraulic control ---electrical control
