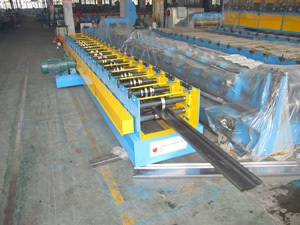

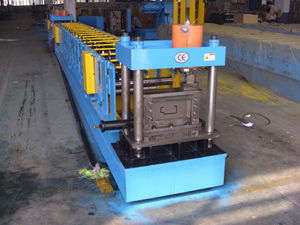

door frame forming machine

Your present location: Home > Productsproducts

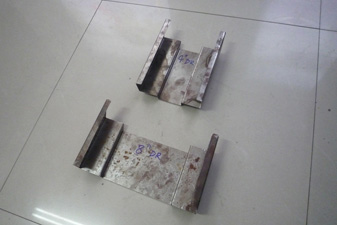

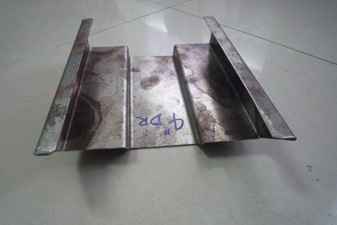

Profile show:

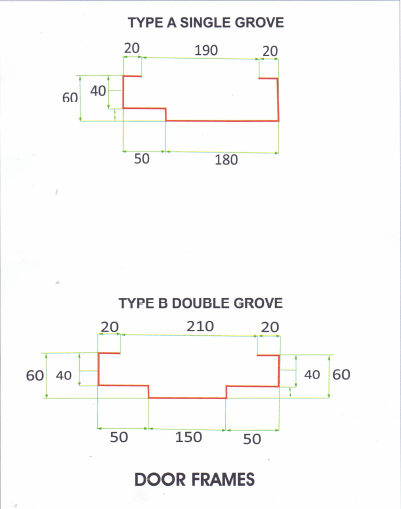

Profile Drawing:

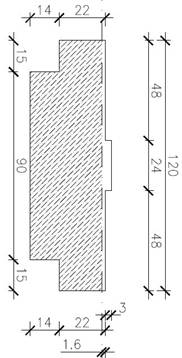

slot size for lock set:

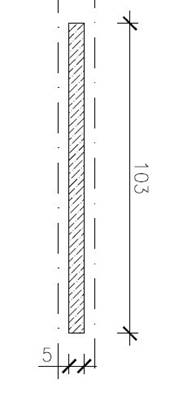

Slot size for hinge set:

2.Main technical parameters:

1	Material thickness	mm	0.8-1.2
2	Forming speed	m/min	15
3	Roll station	/	17
4	Main power	kw	7.5
5	Hydraulic power	kw	5.5
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T	5T hydraulic decoiler

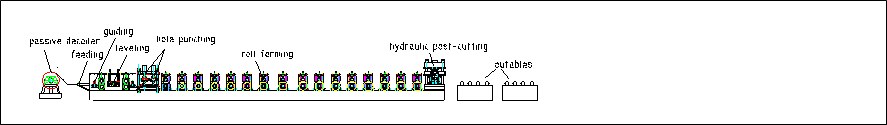

3.Process flow:
5T decoiler--feeding,guiding and levelling--hing slots punching-lock punching-- roll Forming-Hydraulic cutting-Output table(to be prepared by the user）
