Your present location: Home > Productsproducts Perforated Rolling Shutter Door Machine Profile show

Equipment:

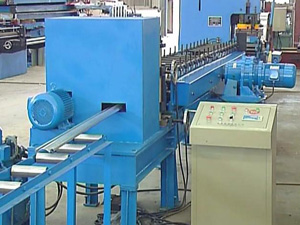

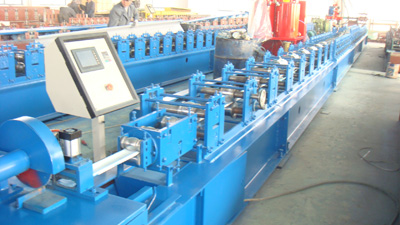

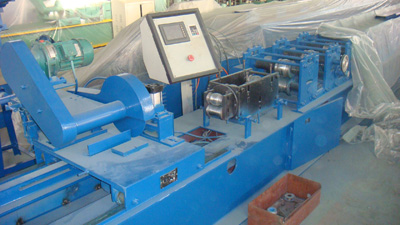

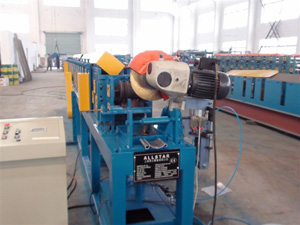

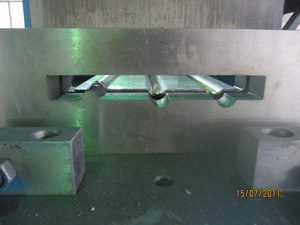

3T Decoiler, Roll forming machine, PLC cabinet, flying saw cutting,  63T punching press,holes punching mould,( 1 set),mechnical feeder,Output table(2),

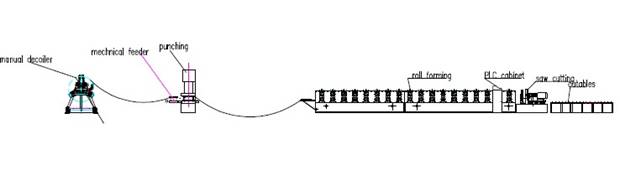

Flow chart:
Passive uncoiler --- Mechanical Feeder --- Holes Punching --- Forming --- Flying Saw Cutting --- Outables

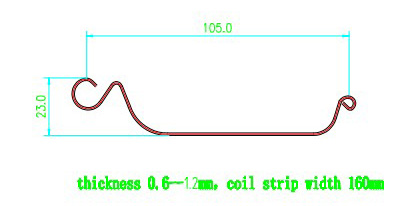

Drawing:



Descrition:

1	Material thickness	mm	0.6-1.2mm Full hard,350Mpa
2	Forming speed	m/min	12-15

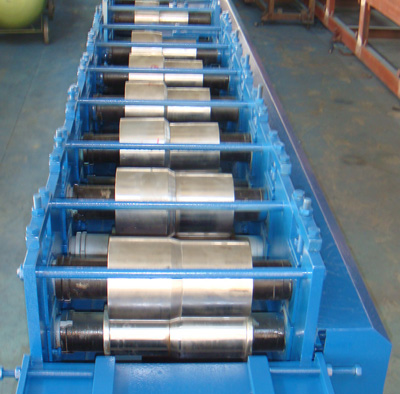

3	Roll station	/	14
4	Main power	kw	7.5
5	Cutting  power	kw	5.5
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Holes punching		80T punching press made in China
8	feeder		Mechnical feeder
9	Drive	/	Chain drive
10	Decoiler	3	3T manual decoiler
