Profile show
Specification:
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
0.3-0.5 |
2 |
Forming speed |
m/min |
12-18 |
3 |
Roll station |
/ |
16 stations |
4 |
Main power |
kw |
5.5 |
5 |
Hydraulic power |
kw |
4 |
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
Chain drive |
8 |
Decoiler |
5T |
Manual |

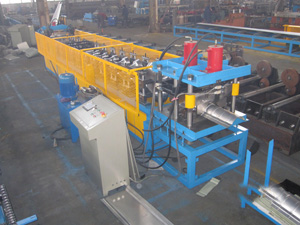

Equipment:
1500kgs manual decoiler, roll forming machine, hydraulic station, PLC cabinet, hydraulic shear, pressing unit,output table(2)

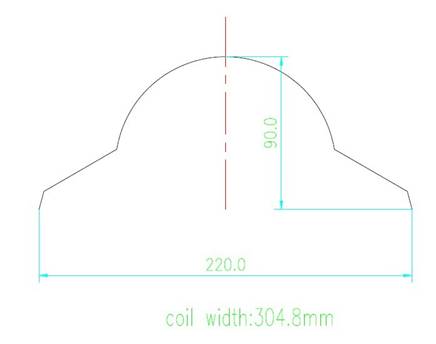

Profile Drawing:

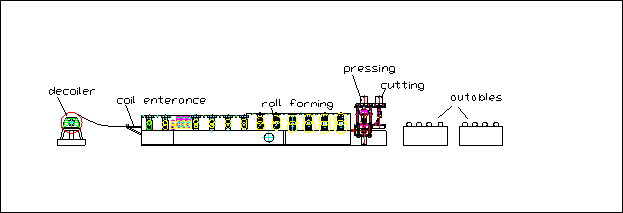

Flow chart:
manual decoiler—feeding—forming—pressing----cutting—product
 |
