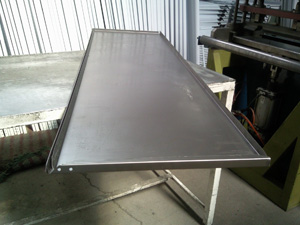

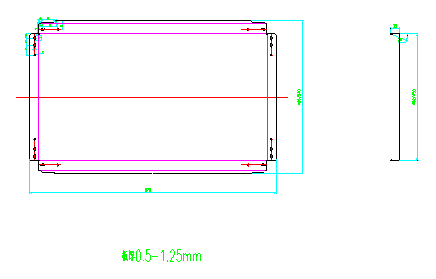

Profile Drawing 1:

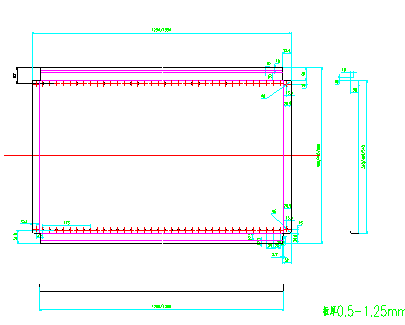

Profile drawing 2:





Technology parameter:

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.15-1.25
2	Structure	/	Wall panel structure
3	Roll station	/	15 stations
4	Main power	kw	7.5
5	Hydraulic power	kw	7.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T	Manual



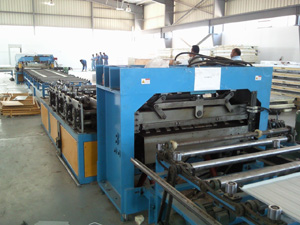

Equipment:
5 tons manual decoiler, 1 set
Side slitting unit ,1set
Side waste recoiler ,1 set

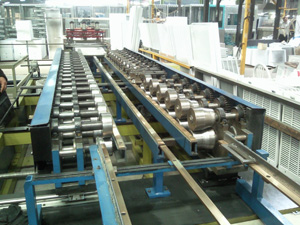

roll forming machine, 1 set(including the corner cut and holes punching moulds)

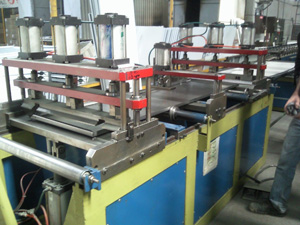

Hydraulic cutting and folding combination
PLC cabinet, 1 set
hydraulic station, 1 set
output table(2m/each X2pcs )

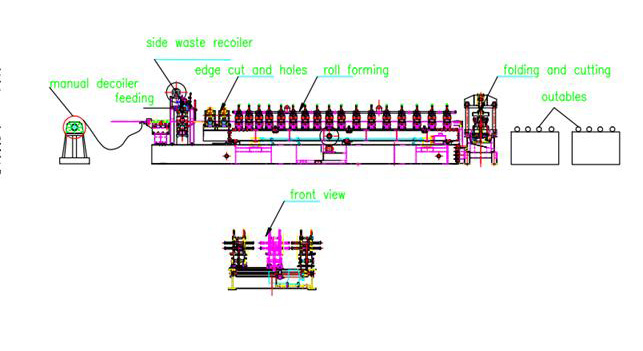

Flow chart:

manual decoiler--feeding--2pinch rolls--slitting---corner cut& holes punching ---roll forming----hydraulic cutting&folding combination-outables
