Specification：
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
1.5-3. |
2 |
Forming speed |
m/min |
12-20 |
3 |
Roll station |
/ |
16stations(depend on the profile) |
4 |
Main power |
kw |
18.5 |
5 |
Hydraulic power |
kw |
11 |
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
chain drive |
8 |
Decoiler |
5T |
Manual decoiler |

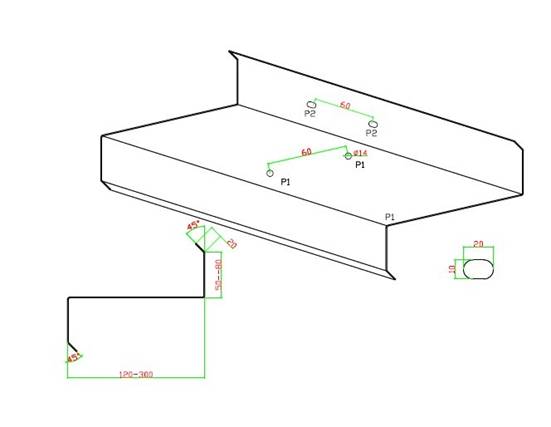

Profile Drawing:

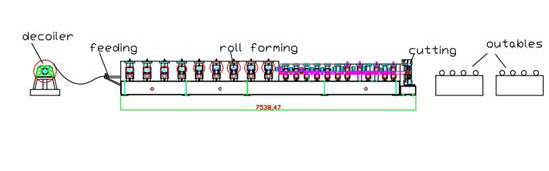

Flow Chart:
 |
