Composition of machine

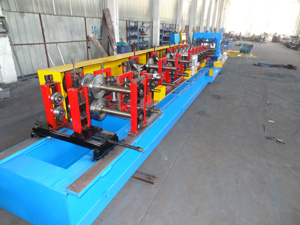

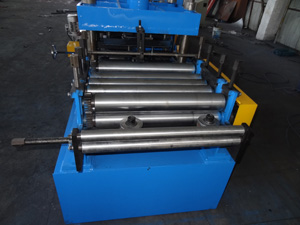

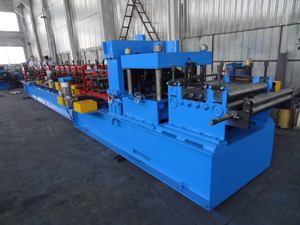

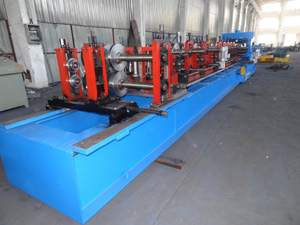

Roll forming main machine…………………………….1 unit
5 Tons manual de-coiler…………………………………1 unit
PLC Control panel……………………………………………1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...one set

The Profile

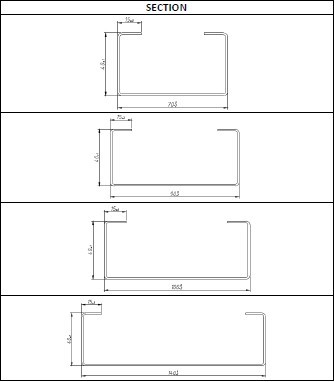

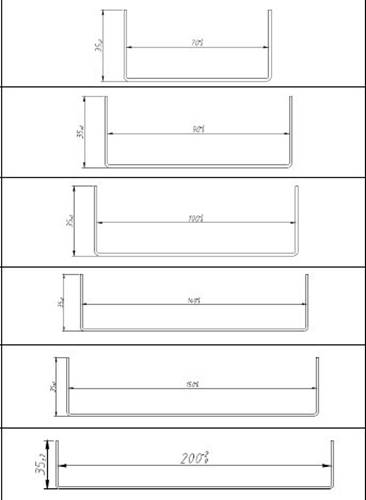

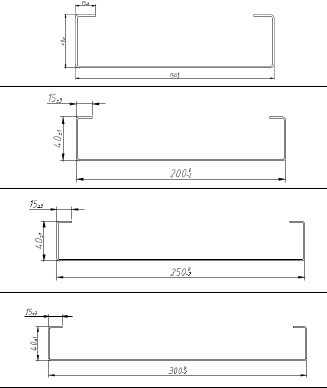

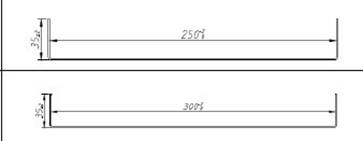

C profiles with punching:

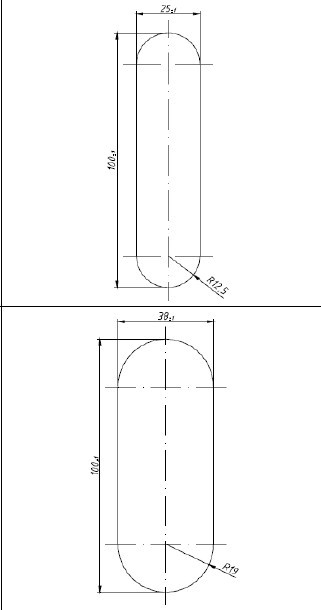

Holes punching drawing:

Flow chart:



NO.	Items	Unit	Main specification
1	Material thickness	mm	1.5-3.0
2	Forming speed	m/min	12-15
3	Roll station	/	14stations(depend on the profile)
4	Main power	kw	18.5
5	Hydraulic power	kw	7.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T	Manual Options:motorized/single-head hydraulic decoiler
