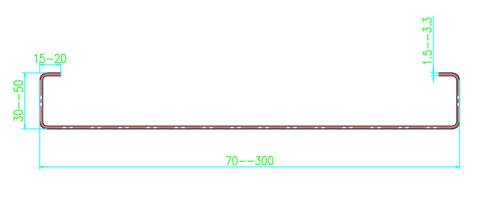

profile drawing
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
1.5-3.2 |
2 |
Forming speed |
m/min |
12-15 |
3 |
Roll station |
/ |
2 |
4 |
Main power |
kw |
22 |
5 |
Hydraulic power |
kw |
5.5 |
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
Chain drive |
8 |
Decoiler |
5T |
Manual type and hydraulic decoiler and coil car as options |

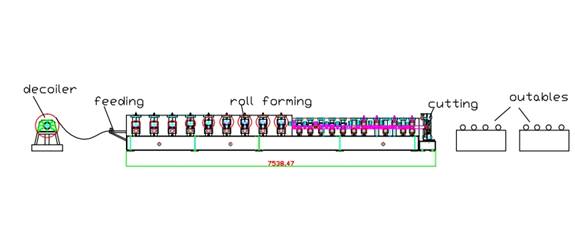

Flow Chart
