C Purlin Profiles Drawing:

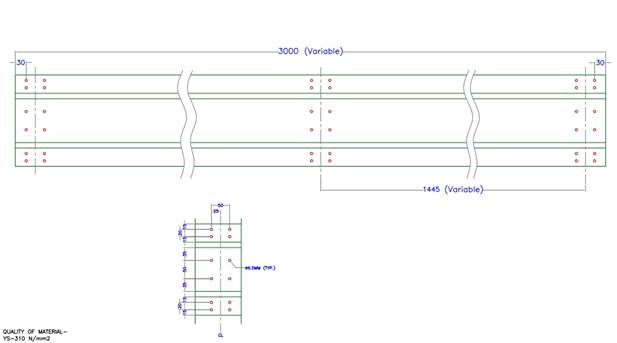

The Holes Punching Drawing(punched on the width)

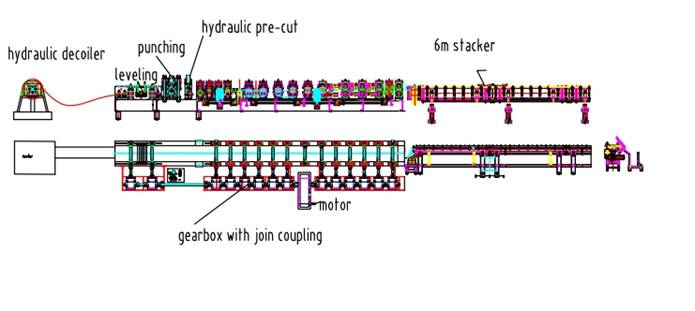

Flow Chart:
Specifications:
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
2-4.0 |
2 |
Forming speed |
m/min |
12 |
3 |
Roll station |
/ |
20 |
4 |
Main power |
kw |
37 |
5 |
Hydraulic power |
kw |
11 |
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
gearbox drive |
8 |
Decoiler |
5T |
Manual type and hydraulic decoiler and coil car as options |
 |
