Specifications:
NO. |
Items |
Unit |
Main specification |
1 |
Material thickness |
mm |
4.0--6.0 |
2 |
Forming speed |
m/min |
12-15 |
3 |
Roll station |
/ |
16 stations |
4 |
Main power |
kw |
45 |
5 |
Hydraulic power |
kw |
11 |
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
7 |
Drive |
/ |
gearbox drive |
8 |
Decoiler |
5T |
hydraulic decoiler |

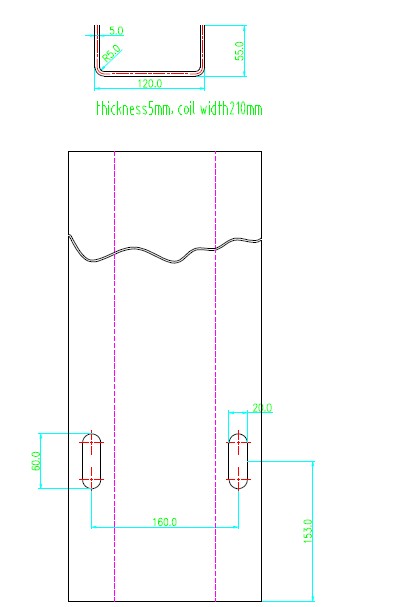

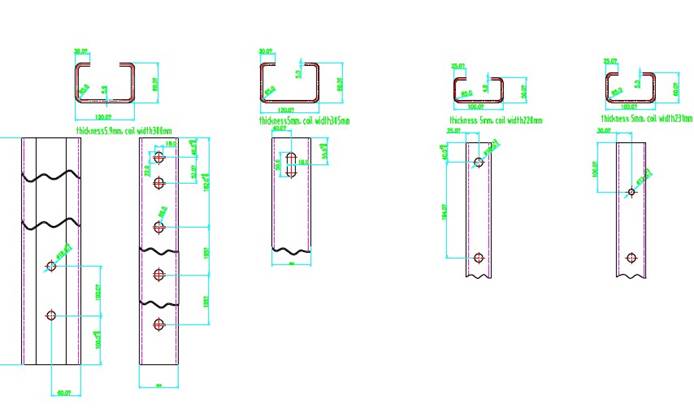

The C profiles:
U profiles:

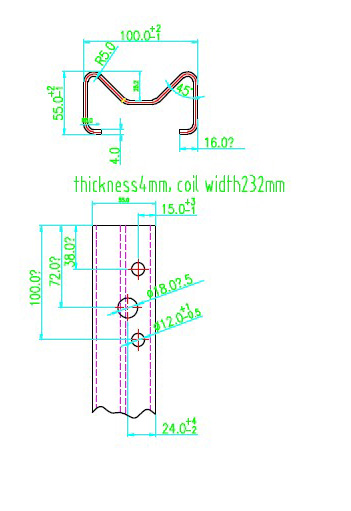

M profile:

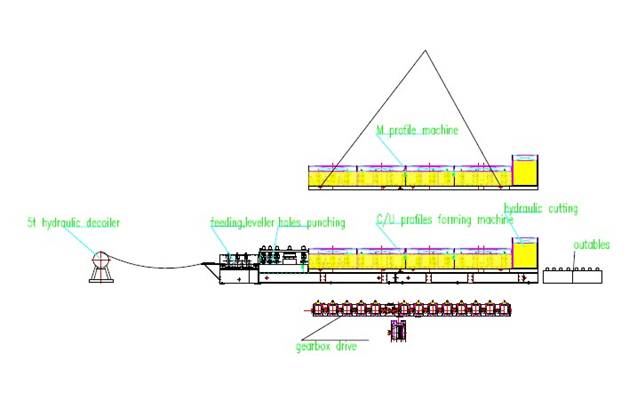

The production flow of equipment
5 tons hydraulic Decoiler—7 rolls Feeding&leveling--—roll forming--holes punching--hydraulic cutting—simple outables
 |
