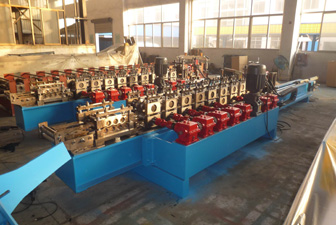

3 in 1 Combination Profiles Paralled High-Speed Forming Machine

Your present location: Home > Productsproducts

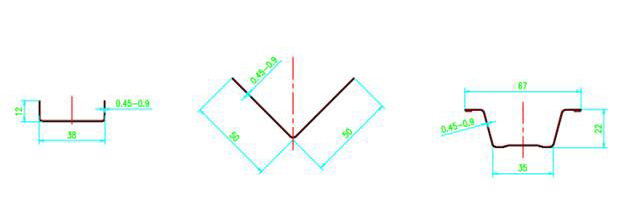

Profile Drawing

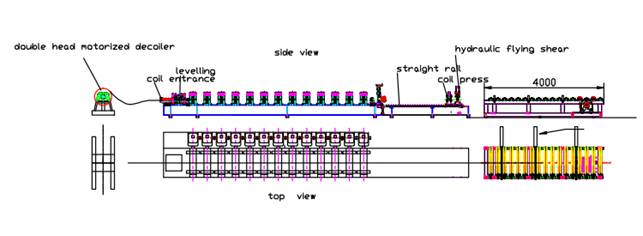

Flow chart:
Double head Motorized decoiler—feeding,leveling--forming—-flying shear-motorized transmission table

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.5-1.2mm
2	Forming speed	m/min	35
3	Roll station	/	14
4	Main power	kw	15
5	Hydraulic power	kw	5.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	3T	Manual type and hydraulic decoiler and coil car as options
