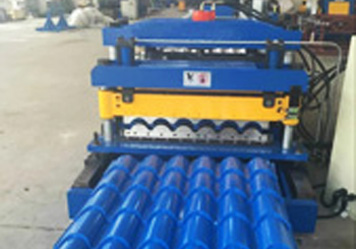

AMS Controller Roofing Tile Double Deck Machine

Your present location: Home > Productsproducts

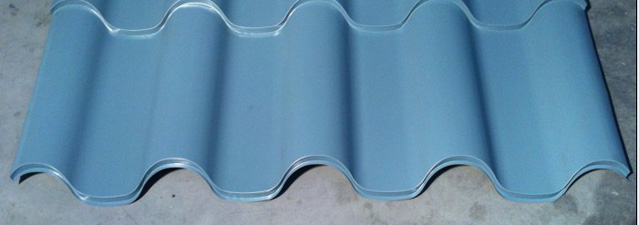

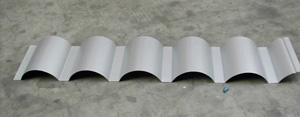

Profile show

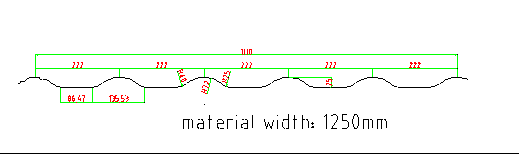

Drawing:

Main Technical specifications:

NO.	Items	Unit	Main specification
1	Suitable Material	mm	0.35-0.75mmx 1219mm
2	Forming speed	m/min	16
3	Roll station	/	17 stations(depend on the profile)
4	Main power	kw	7.5
5	Hydraulic power	kw	4
6	Control system	/	PLC, panasonic/Siemens
7	Drive	/	by chain
8	Way of decoiler		5T manual decoiler 5T hydraulic decoiler as an option

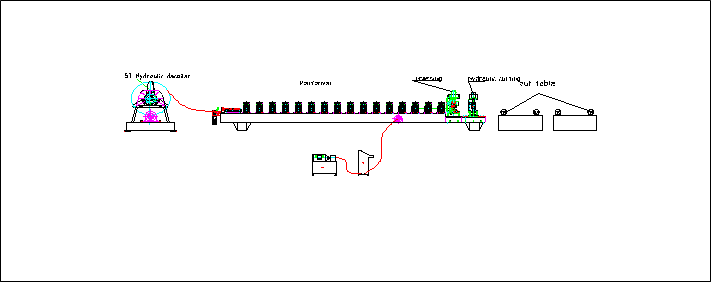

Flowchart:
5 hydraulic decoiler---Guiding---Film covering--- Roll forming machine-- pressing----hydraulic cutting--- Output tables
